Exploring Press Brake Tooling Options for Precision and Efficiency
Press brakes are an essential piece of equipment in the metal fabrication industry, offering precision bending and shaping of sheet metal. However, the true versatility of a press brake lies in its tooling options. Understanding the various press brake tooling options available can greatly enhance your shop’s productivity, accuracy, and flexibility.
What is Press Brake Tooling?

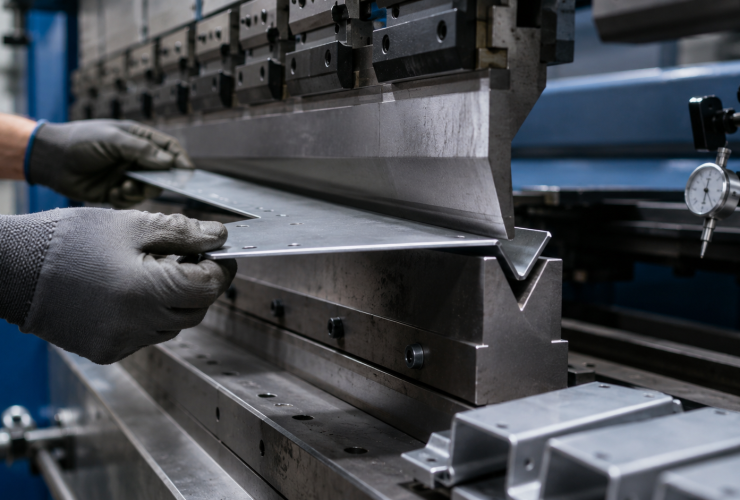

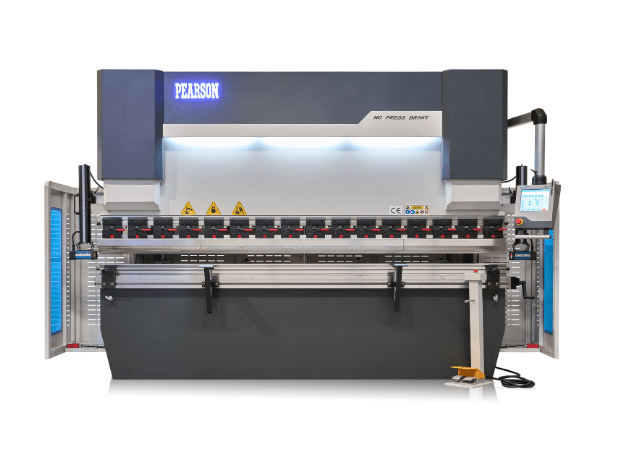

Press brake tooling refers to the specific dies and punches used with a press brake machine to bend and shape metal. The tooling setup determines the range of bends and the precision that can be achieved. There are numerous press brake tooling options, each suited for different tasks and materials. Choosing the right tooling can make a significant difference in the quality and efficiency of your work.
Standard Press Brake Tooling
Press brake operations most commonly use standard tooling. It includes a variety of punches and dies for basic bending tasks. Manufacturers typically make these tools from high-quality steel and design them to handle a range of materials and thicknesses.
- V-dies: These are the most common type of die and come in various sizes. The choice of V-die size depends on the thickness of the material and the desired bend radius.
- Acute angle dies: These are used for bending acute angles, usually 30 degrees or less.
- Gooseneck punches: Designed to prevent the tool from colliding with the workpiece, making them ideal for intricate bends.
Precision Ground Tooling
Precision ground tooling is manufactured to tighter tolerances compared to standard tooling. This type of tooling is essential for high-precision work where accuracy is paramount. Precision ground tools ensure consistent bending results and prove particularly useful in industries that require tight tolerances.
- Precision punches and dies: These tools are ground to precise dimensions, ensuring minimal variation in bends.
- Segmented tooling: This tooling allows for more flexibility in bending complex shapes and is ideal for producing parts with multiple bends close to one another.
Custom Press Brake Tooling
For specialised applications, custom press brake tooling is often the best option. Custom tooling is designed to meet the specific requirements of a project, providing the exact shapes and bends needed. While custom tooling can be more expensive and have longer lead times, it offers unparalleled precision and efficiency for unique tasks.
- Forming dies: Custom forming dies can create complex shapes that standard tooling cannot achieve.
- Offset dies: These are used for creating offsets in a single step, improving productivity for certain applications.
European Style Tooling
European-style tooling, also known as precision-ground or ‘Promecam’ tooling, features high precision and a modular design. This tooling system uses standardized tools, allowing for easy interchangeability, which offers flexibility and reduces setup times.
- Modular tool segments: You can combine these segments to create various lengths and configurations, providing versatility for different projects.
- Quick-release clamping systems: These systems facilitate fast and easy tool changes, significantly reducing downtime.
Air Bending and Bottom Bending Tooling
The method of bending also influences the choice of press brake tooling options. Air bending and bottom bending are two common methods, each requiring specific types of tooling.
- Air bending tools: These tools allow for bending without the punch contacting the material fully, offering greater flexibility and the ability to achieve various angles with a single set of tools.
- Bottom bending tools: These tools fully press the material into the die, producing a more precise and consistent angle, though they require more force and offer less flexibility than air bending tools.
Conclusion
Selecting the right press brake tooling options is crucial for achieving optimal results in metal fabrication. Whether you are using standard, precision ground, custom, or European tooling, understanding the specific advantages and applications of each type can greatly enhance your operation’s efficiency and precision. By investing in the appropriate tooling for your projects, you can ensure high-quality bends, reduce setup times, and ultimately increase productivity.
