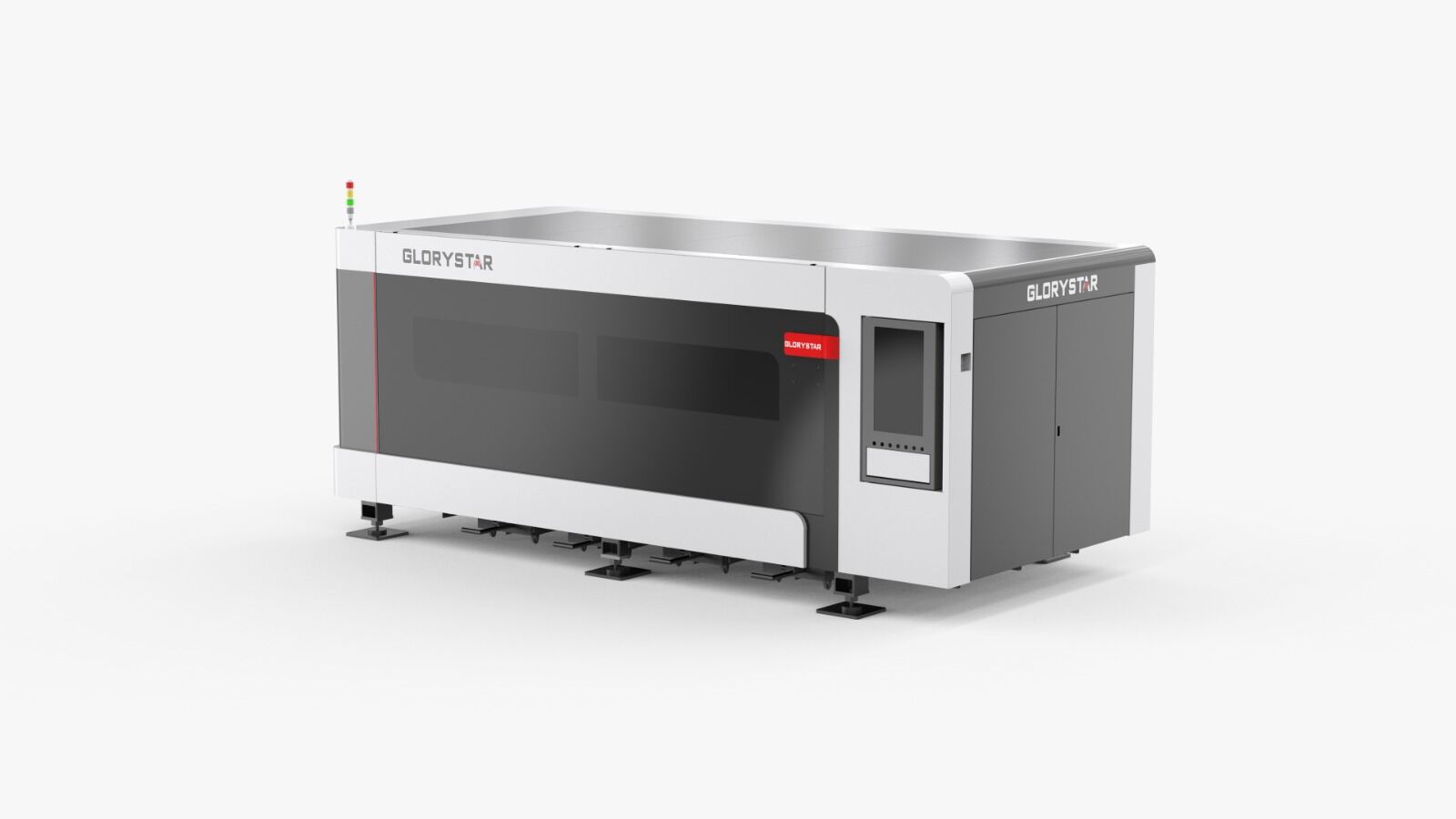

A Glorystar GS-C – Single Table Fiber Laser cutter.

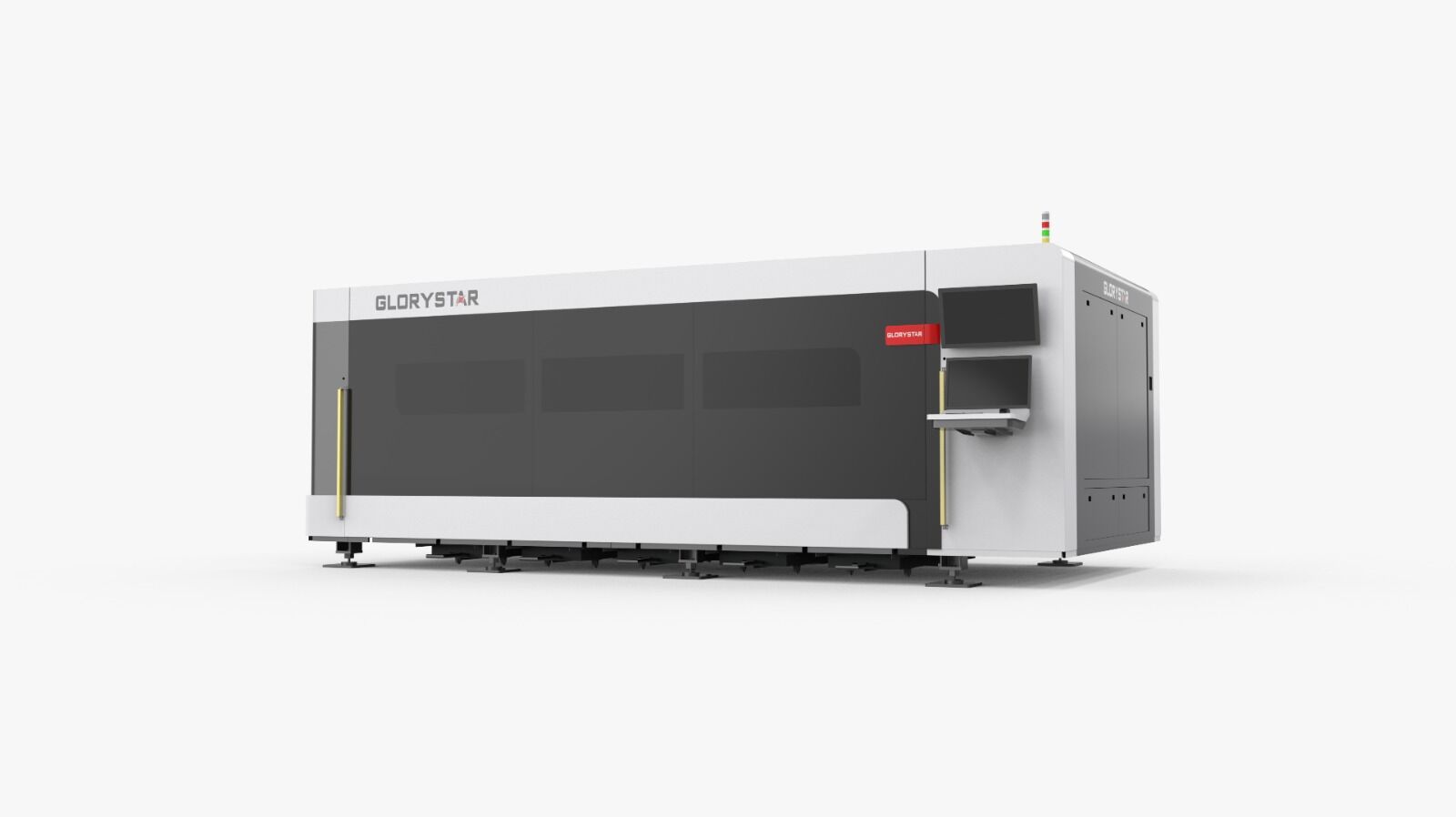

A Glorystar GS-C – Single Table Fiber Laser cutter.
A Glorystar GS-C – Single Table Fiber Laser cutter.
A Glorystar GS-C – Single Table Fiber Laser cutter.
A Glorystar GS-C – Single Table Fiber Laser cutter.
A Glorystar GS-C – Single Table Fiber Laser cutter.

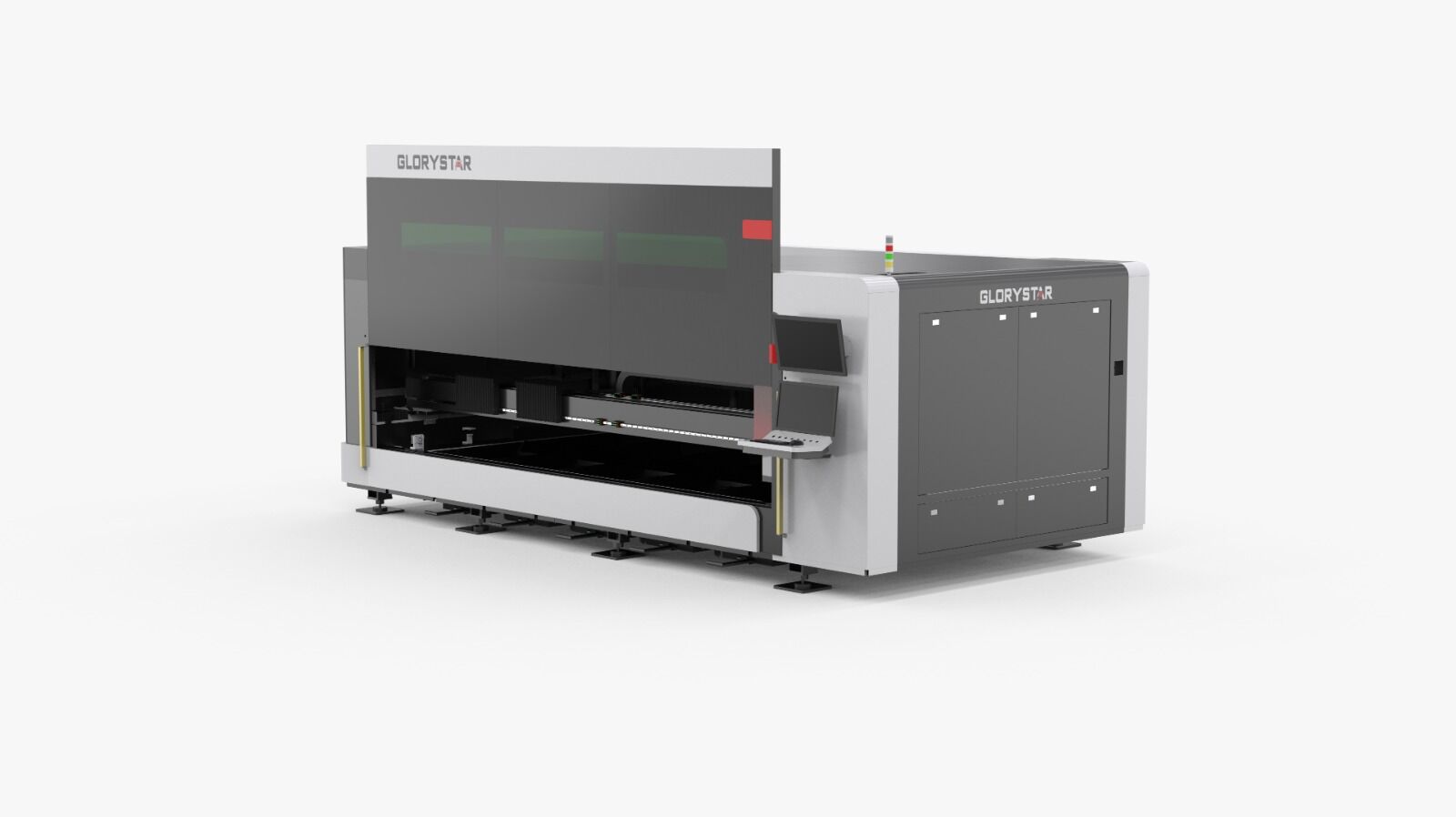

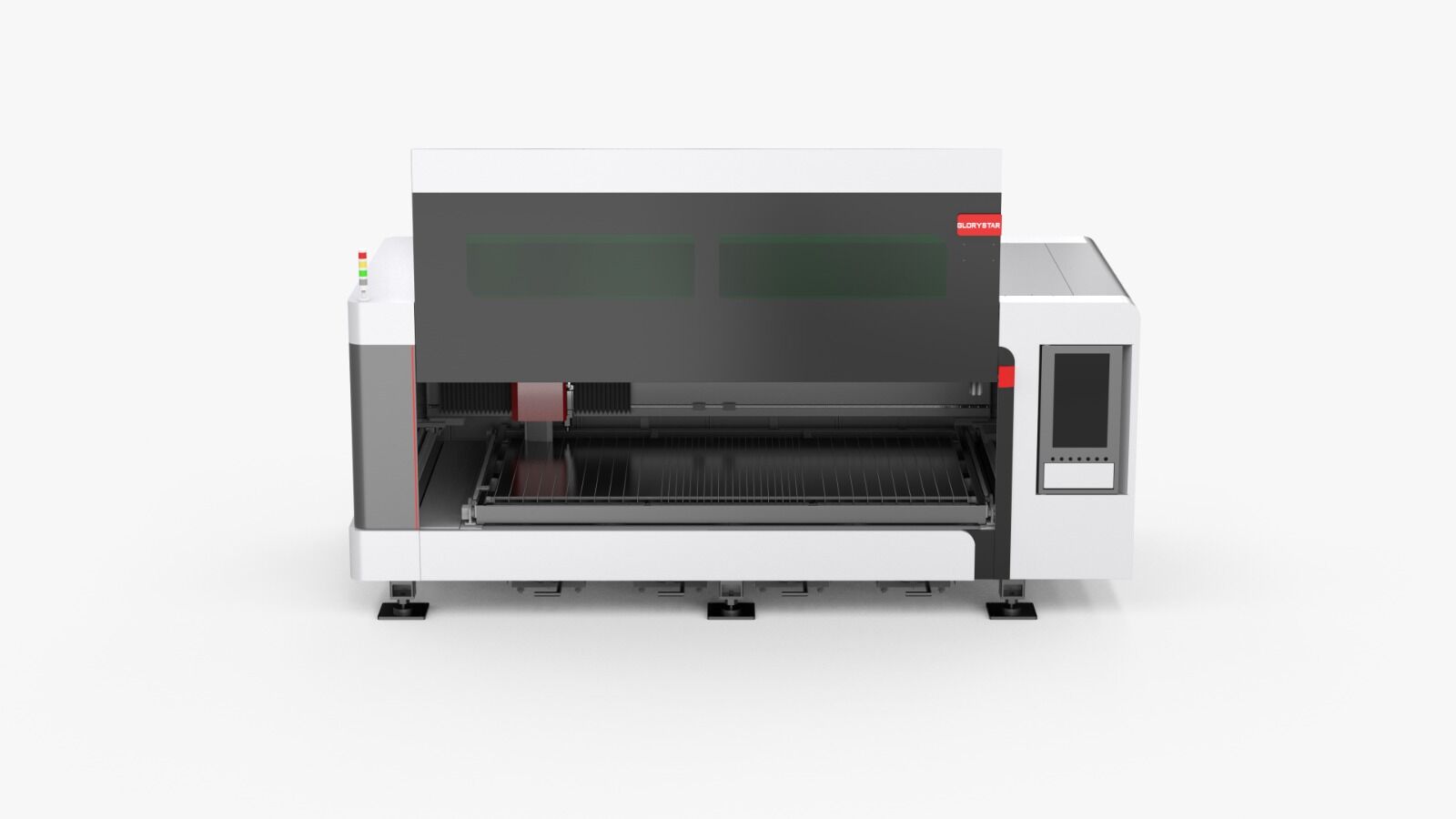

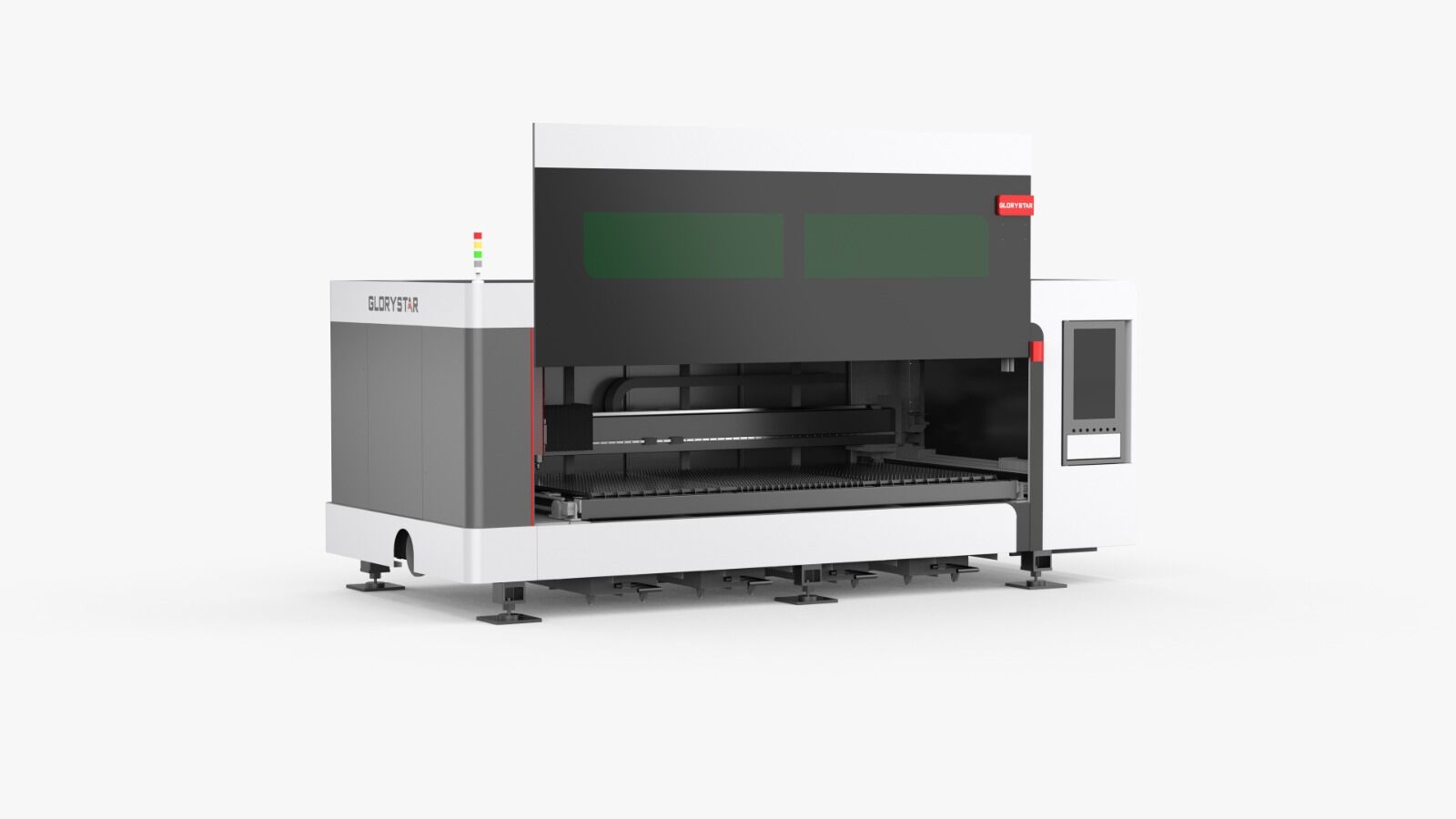

Glorystar GS-C – Single Table Fiber Laser

The Glorystar GS-C range of fiber lasers are equipped with a 3m x 1.5m or 4.0m x 2.0m cutting area with a motorised front load table, which simply sides in and out of the machine. Material can be easily loaded and unloaded outside of the machine enclosure, giving the option to load material by crane as well as manually.

Introducing our exclusive new partnership – GLORYSTAR – AFM Europe New and Used Metal Working, Fabrication & Sheet Metal Machinery

Description

The machine can be equipped with a power source from 1.5kw up to 6kw. Panasonic motors and drives for the X & Y axis, as well as ethercat technology results in fast acceleration, fast positioning speeds and fast cutting times.

The control is by Cypcut and includes software for drawing parts or importing DXF files. Class leading components ensure superior cut quality, high reliability and reduced down time.

High Speed

Using industry-leading servo motors, offering high positioning speeds of 100m/min helping you achieve higher production efficiency and output in a shorter time.

High Precision

High Precision ball screws and linear guides help to achieve a positional accuracy of +or- 0.03mm, and a consistent cut quality.

Space-Saver & Cost Effective

Single-platform structure saves space within your workshop, making this machine a perfect choice for those with workshop size constraints.

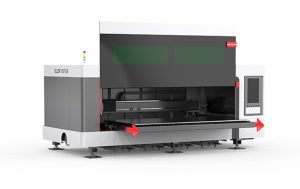

Motorised Front Load Table:

Rather than having to manoeuvre materials into plave within a fixed workspace, you can simply pull out the worktable to access the material from any angle. It is much easier to load and unload materials, saving time and effort, greatly improving working efficiency

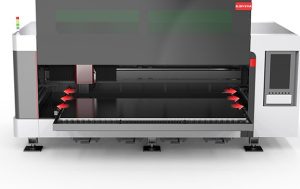

Powerful Dust Removal System:

Automatic zoning dust removal, effectively removes dust, debris and smoke during the whole cutting process. Safe and environmentally friendly.


Cutting Capacity
  1500W 2000W 3000W 4000W 6000W
Stainless Steel 1-6mm 1-8mm 1-10mm 1-14mm 1-25mm
Aluminium 1-4mm 1-6mm 1-8mm 1-10mm 1-20mm
Carbon Steel 1-16mm 1-18mm 1-22mm 1-22mm 1-30mm
Brass 1-3mm 1-5mm 1-6mm 1-8mm 1-12mm



Name Brand Performance advantage
Laser Source RAYCUS/MAX PHOTONICS Excellent beam quality under high power, large surface area/volume for gain cut-off, inherent fully enclosed flexible optical path, maintenance-free optical path, single junction diode (pump optical module); over 100,000 hours of service life, small size Light weight, easy integration, high output power, water and electricity saving and cost saving.

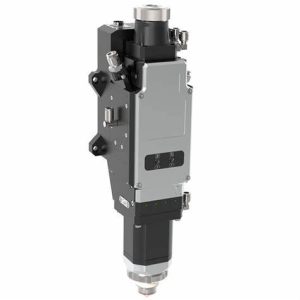

Laser Cutting Head Glorystar/BLT Automatic focusing to improve cutting efficiency; Stable and reliable;

Servo motor is used for focusing, the focus stroke is large, and thick plates can be cut

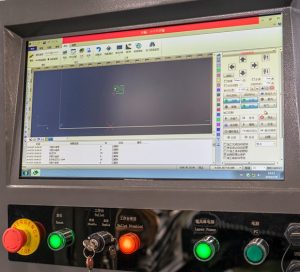

Software System FSCUT Strong compatibility, with advanced function modules such as capacitor edge seeking, electric focusing, plate/ tube cutting, fly cutting, leapfrogging, compensation, power-off memory, etc.
