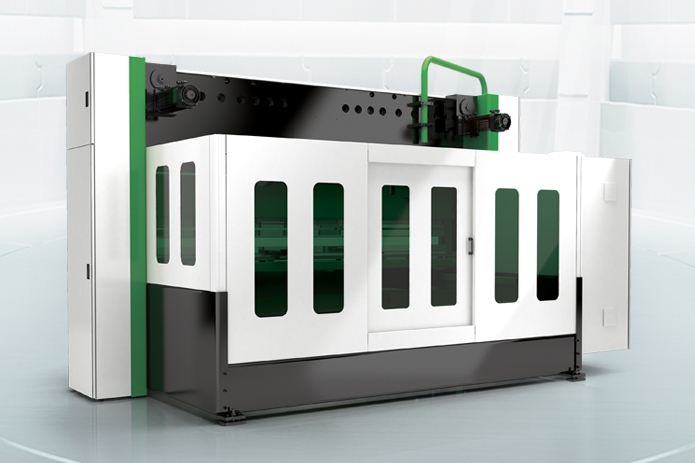

An Ermaksan Green press FX Servo

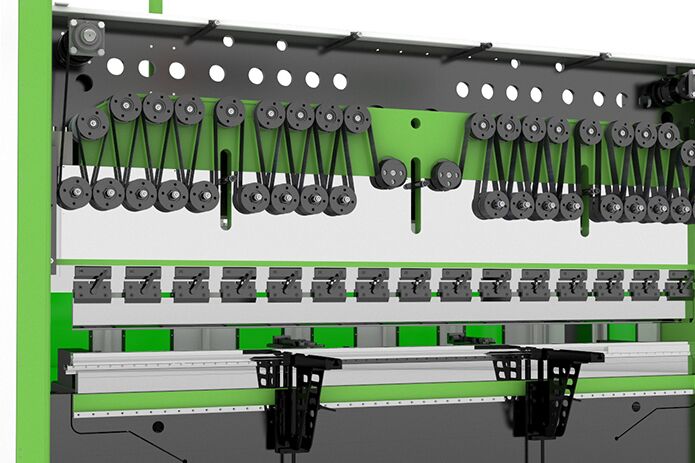

A Green press FX Servo internal workings

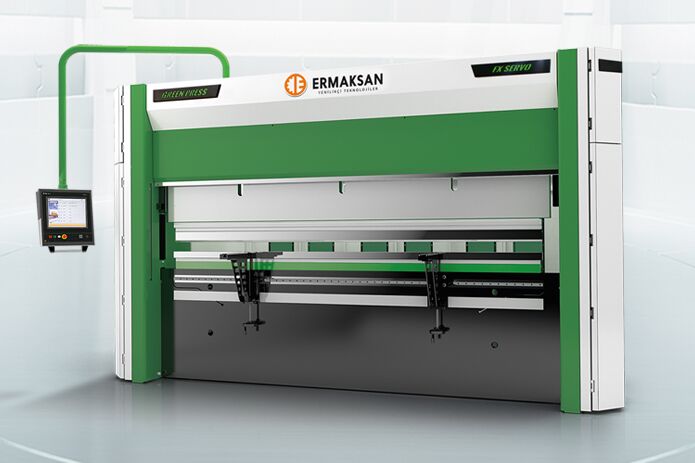

A Green press FX Servo
A Green press FX Servo

GREEN PRESS FX SERVO

New Generation Technology…

With the rise in the energy prices in the global market, preferability of low energy consumption machines is increasing. In addition to protecting the business profits, consumers shape their productions with the social responsibility awareness such as environmental awareness, effective use of energy resources etc. Setting off from this purpose, Ermaksan combines its experience in producing press brakes for more than 30 years with today’s state of art technologies and offers the new generation Green Press FX Servo Motor press brakes to its users.

Description

  • Steel body with mono bloc welding of ST44 material which is rigid against bending and high tension
  • 6 axes (Y1, Y2, X, R, Z1, Z2)
  • CNC controlled backgauge system with 4 axes (X, R, Z1, Z2) AC servo motor
  • CNC controlled motorized crowning system
  • Top and bottom tools hardened and grinded (835 mm length)
  • Easy clamping top tool holder system
  • Control units; DELEM 66T, ER99
  • 3D colour graphics display and offline software
  • Electric panel with cooling system designed and manufactured from SIEMENS electrical and automation products in compliance with the CE regulations
  • Backlight protection
  • Switch side protection covers
  • Y1+Y2 axis synchronization with a tolerance of 0.01 provided by linear scales
  • CE compliant foot pedal

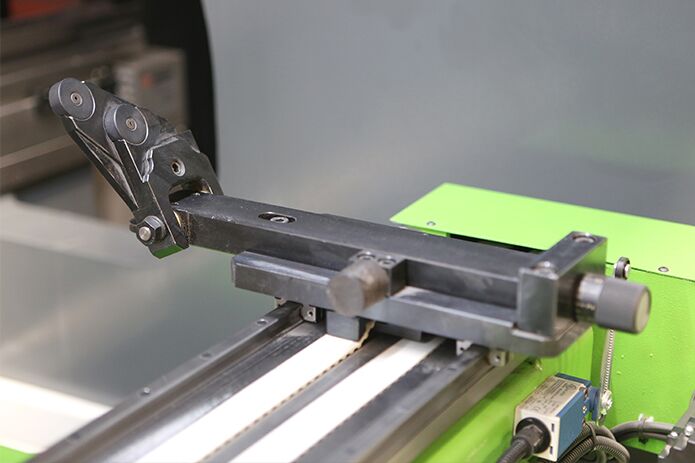

  • Sliding front support arms with T slot and mm/inch scale
  • 410 mm throat depth (110 – 170 tons)
  • Leuze front light protection system
