Description
- For cutting of hollow profile and full rivet material, stainless steel, tool steel,…
- Torsion-free, strong cast iron saw frame
- 2 speed settings (35 / 70 m/min) for optimal cutting results

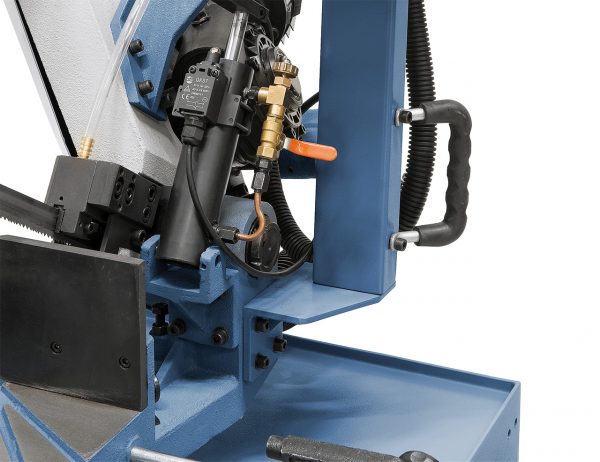

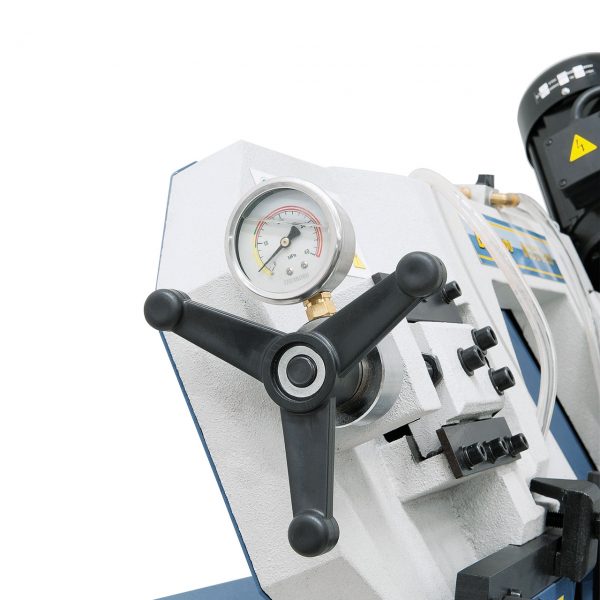

- Saw frame pressure regulated by adjustable hydraulic cylinder

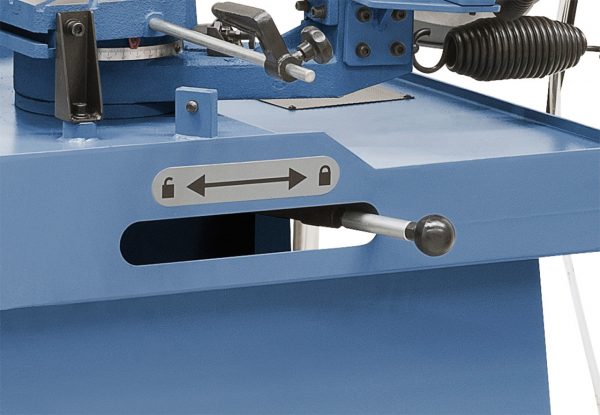

- Sawframe swings left (-45°) and right (+60°) for double mitre cutting
- High-quality materials ensure a quiet, vibration-free run

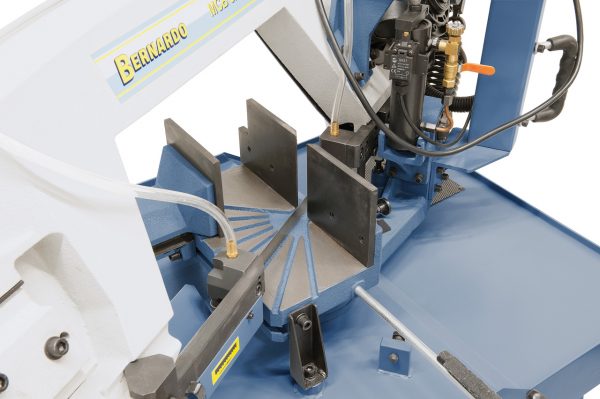

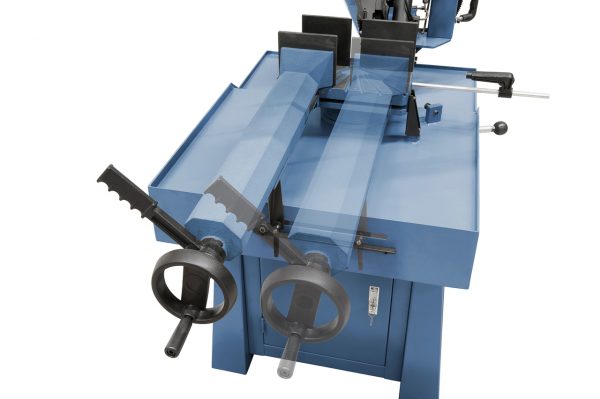

- Robust cast iron vice with material fence, ideal for repetitive cutting

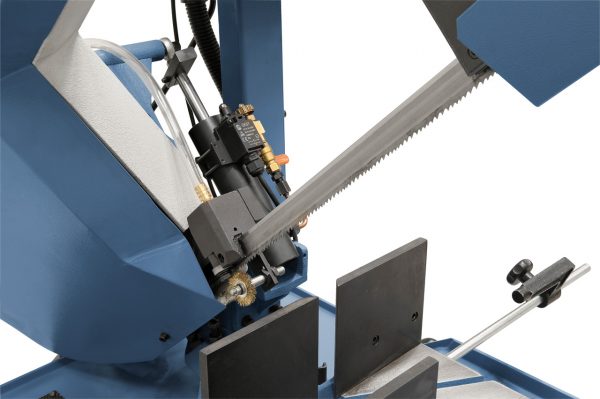

- Bandsaw blade guiding with quick adjustment to the workpiece, guarantees optimal cutting results
- Robust construction ensures smooth and vibration-free run
Cutting capacity round 90°
240 mm
Cutting capacity square 90°
225 x 225 mm
Cutting capacity flat 90°
310 x 180 mm
Cutting capacity round 45°
200 mm
Cutting capacity square 45°
180 x 180 mm
Cutting capacity round 60°
140 mm
Cutting capacity square 60°
140 x 140 mm
Working height
950 mm
Bandsaw blade dimension
2680 x 27 x 0,9 mm
Cutting speeds
35 / 70 m/min

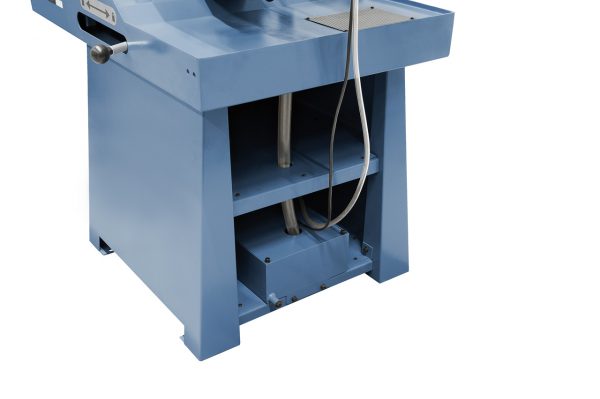

Coolant pump
45 W
Motor power output S1 100%
1,1 / 1,5 kW
Motor power input S6 40%
1,5 / 2,2 kW
Voltage
400 V
Machine dimension (L x D x H)
1550 x 870 x 1490 mm
Weight approx.
313 kg
