Description
Production times are the most important profit issues of enterprises

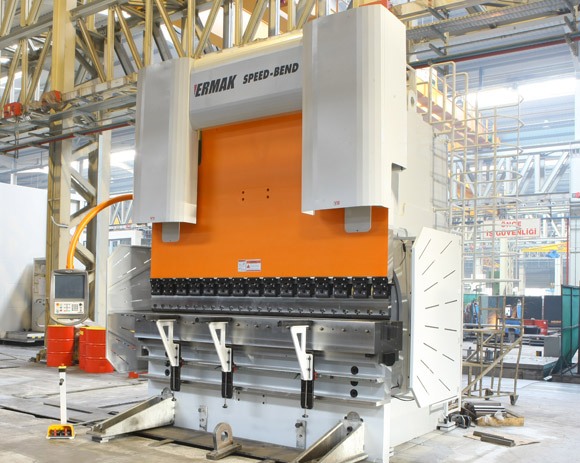

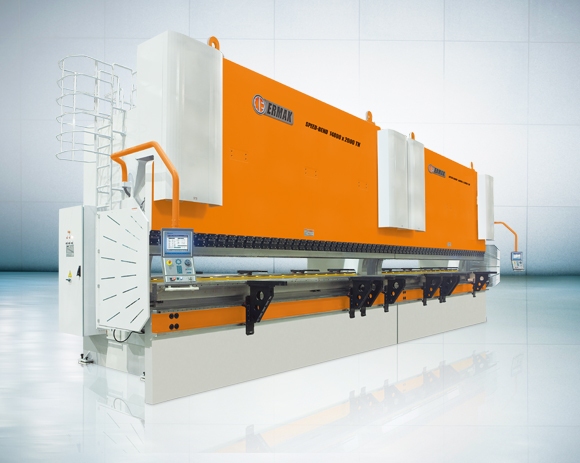

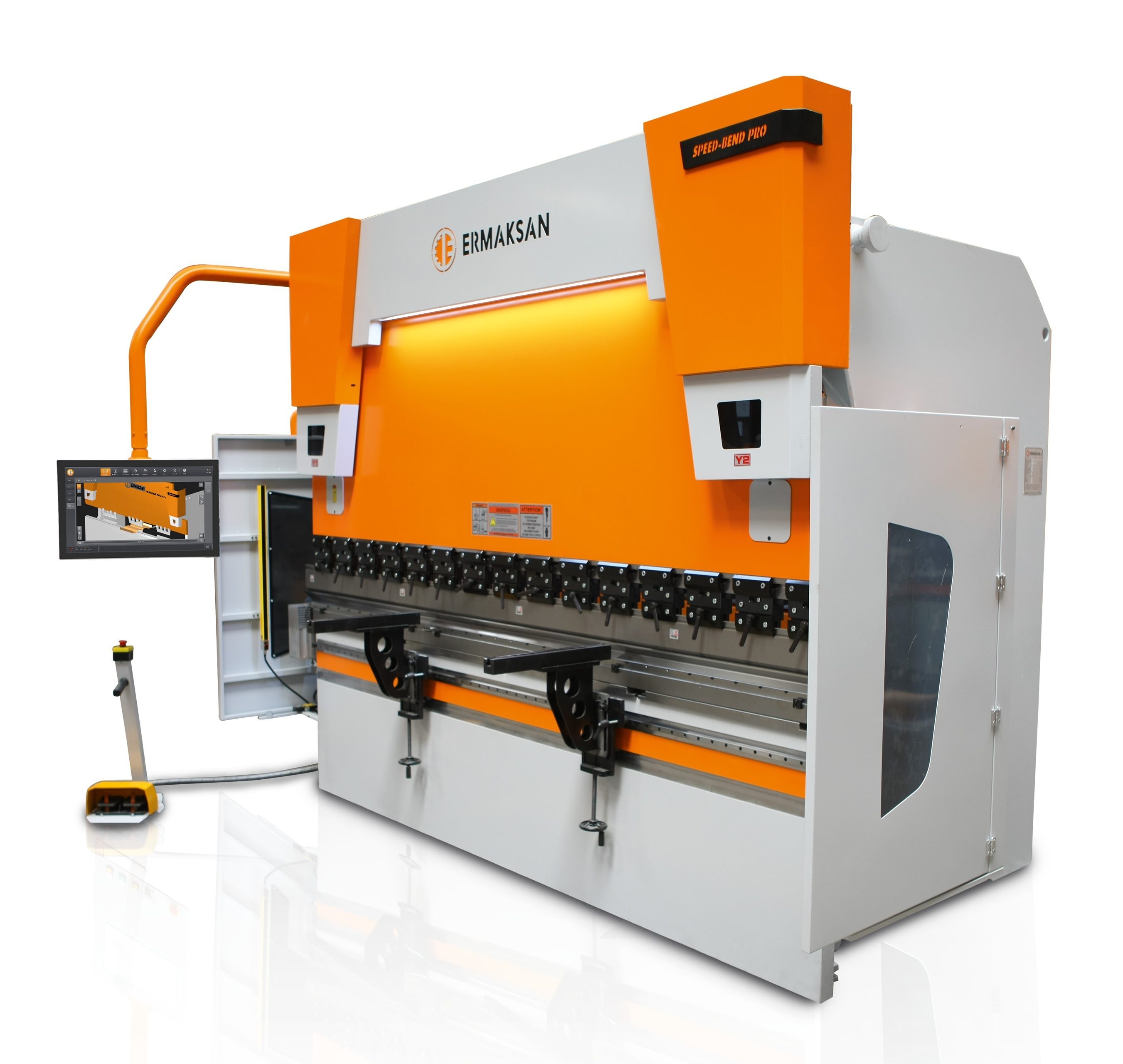

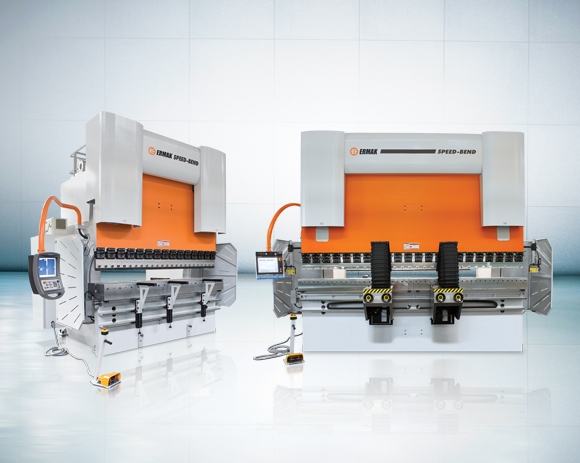

Speed-Bend series is designed to enable speed and high quality production capability in order to decrease time unit costs in a competitive environment.
Free-fall, bending and return speeds of Speed Bend series press brakes are increased according to the needs of today. The Speed Bend series offer 2 times faster production capacity compared to conventional CNC press brakes.
Customer benefits
- High free-fall speed, high bending speed and high return speed.
- The servo press-break which has the most powerful software and hardware with its ER-90 controller.
- Motorized crowning system.
- 2 axis (X,R) back gauge system with servo motors.
- AP3 / AP4 front sheet support system.
- Easy installation and training.

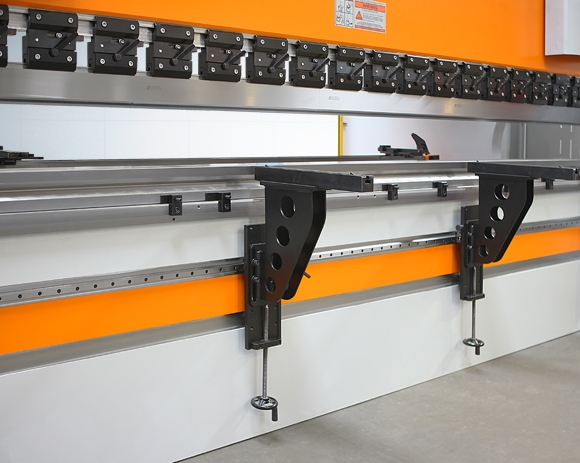

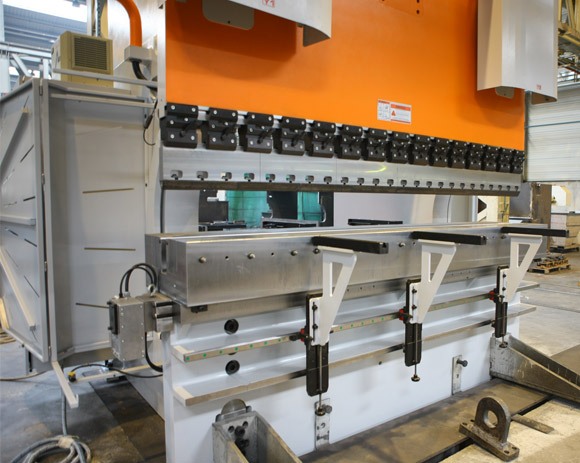

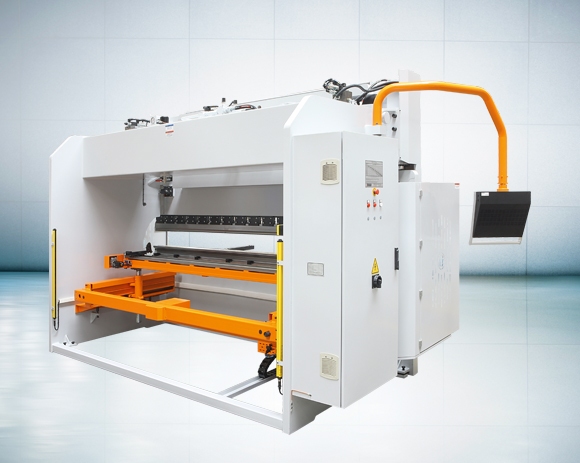

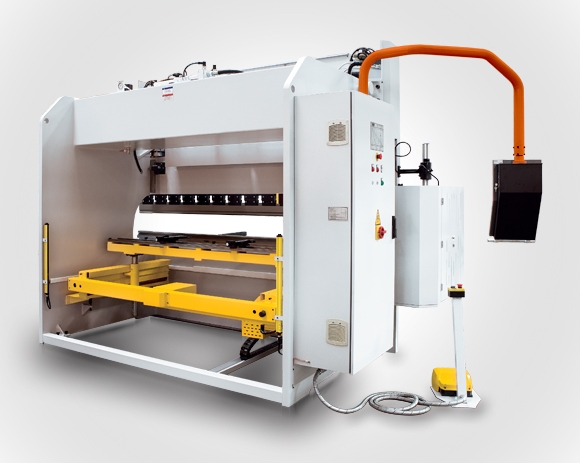

Servo motorized back gauge X + R (standard)
CNC back gauges produced and designed by Ermaksan work very fast and accurately. The strong construction ensures an efficient operation of the mechanism for many years. The system is moved by servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm
Z1 + Z2 + X1 + X2 + R1 + R2 and axis are given as optional.

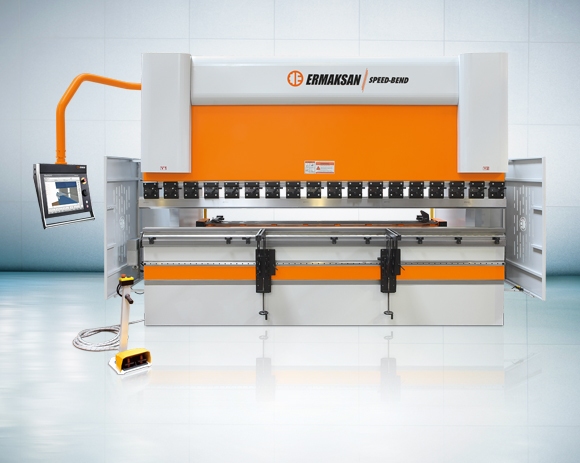

STANDARD EQUIPMENT
- Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
- 4 axes (Y1, Y2, X and R)
- Back gauge system with X+R axis driven by AC servo motors.
- Standard graphic controllers can be selected from: ER-90 3D color graphical touch screen controller with offline software, Cybelec Mod Eva 12 S 3D color graphics with PC 1200 offline software, Delem DA66W 2D with colored graphics.
- HOERBIGER servo hydraulic system.
- CNC controlled motorized anti-deflection system.
- Electrical panel with cooling system designed to meet CE standards and composed of automation and electrical equipment with SIEMENS brand.

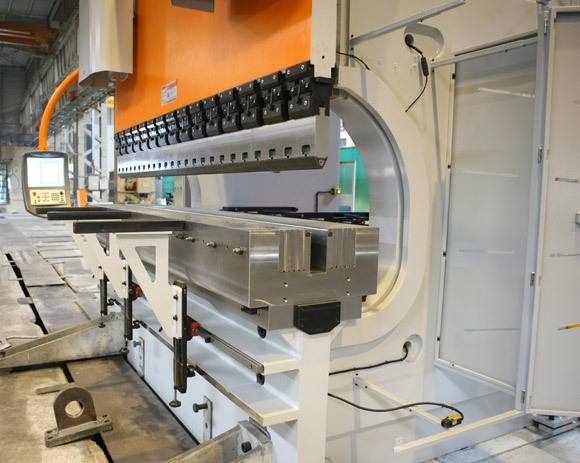

- Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
- Easy to clamp tool holding system with upper and lower tools.
- Ergonomic user friendly, pendant control panel.
- Back light safety guards (category-4)
- Front side covers with safety switches.
- Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 tolerances.
- Foot pedal conforming to CE regulation.
- Sliding front support arms with T slot and mm/inch rulers.
- Throat depth 410 mm.
OPTIONAL EQUIPMENT
- Graphical controllers; Cybelec ModEva 15S 3D with PC 1200 offline software, Delem 69W 3D graphical color controller.
- Z1+Z2 axis
- X1+X2 axis
- R1+R2 axis
- SICK C4000 advanced finger protections 14 mm (easy programable sick soft with PC: Blanking. Reduced resolution, cascade working etc), (category-4)
- Laser protection system for die area, LASERSAFE PCSS, AKAS LASER SAFETY IILC2000, AKAS LASER SAFETY IILC2000 (MOTORIZED), sick V 4000 (camera based) system), DSP photo electric laser safety.
- Laser angle measurement system, with LASERSAFE IMG 100 or Data-M cobra Laser check system.
- Hydraulic and dynamic-Hydraulic anti-deflection (crowning) features.
- ERMAK Pneumatic top tool clamping system.
- Hydraulic top and bottom tool clamping system.
- CNC controlled bending aids (AP3+Ap4 axis).
- Hydraulic oil coolant and oil heaters.
- Automatic central lubrication system.
- Special throat depth (500,600,750 mm and above).
- Special top and bottom tools.
- Software options EBS ERMAK bending system software for ER-90, Cybelec PC1200, Cybelec CYCAD 2D DXF convertion, Delem V-Bend / V-DXF / V-Draw, Delem profile W2D/W3D.
- Tandem applications
- Tool cabinets
